Forwarding logged events to another service

Sharing logged activity adds another layer of visibility to your machine identity management strategy.

The Connectors API lets you forward logged CyberArk Certificate Manager - SaaS events to other services. Using simple JSON, you might send events to your security information and event management (SIEM) environment, or to Slack or Microsoft Teams channels.

For example, you could send all event log data to your SIEM tools to aggregate and analyze so you can take appropriate action in a timely manner.

What logged data can be shared?​

Event logging captures many data points that you can then share via webhooks.

While all filter categories and criteria are available on the Certificate Manager - SaaS Event Log page, the current version of the API exposes the following:

  • Criticality
  • Event
  • Event Types (and all filter criteria within it)

Setting up event log sharing using the Connector API​

The steps below walk you through how to use the Connectors API to integrate event logging using either one of the following connectors:

  • Generic webhook: specify your own URIs where you want to send logged data, such as to your SIEM or other security systems.
  • Slack: send logged events to a Slack channel for monitoring and sharing activities that are happening in your Certificate Manager - SaaS account.
  • Microsoft Teams: send logged events to a Teams channel to improve monitoring and sharing activities happening in your Certificate Manager - SaaS account.

Before you begin​

To set up event log sharing​

Forward logged events in three simple steps:

  1. Decide which logged events you want to forward, and where you want them delivered (your target URI).
  2. Write your JSON.
  3. Give it a try!

Step 1: Decide what logged data you want to forward​

Take a look at the available event log filters and categories so you have an idea of the data you can retrieve and share.

In fact, it's a best practice to play with filtering event logs so you have a clearer idea of what you want to include when you forward logged events. Learn more

To view event log categories and criteria in Certificate Manager - SaaS​

  1. Log in to Certificate Manager - SaaS.

  2. Click Settings > Event Log.

  3. Click Add Criteria to see the list of available filter categories.

  4. Select a category and then click the Event list to see all criteria for the category you selected.

    screenshot of Event Log page

  5. (Optional) If you want to see what logged events are returned based on your selections, click Apply Filter.

Another way to see filter categories all at once

Another way to see a full list of filter categories and criteria all at once is through the /v1/activitytypes API endpoint. This can be executed directly from Developer Hub by following these steps:

  1. If you haven't already done so, copy your API key.

  2. Go to Retrieve types of activities used for event logging.

  3. In the Authentication section on the right, paste your API key into the Header field. Click Try It.

  4. All available categories and criteria are listed in the Response section.

Step 2: Write your JSON​

Write your own JSON and be sure to include the following:

  • Specify your target type: Slack or Generic connectors.
  • Add the URL of your chosen target.
  • Specify the filter category and criteria you want sent to the target.

Quick Reference: Filter categories available via API

While all filter categories and criteria are available on the Certificate Manager - SaaS Event Log page, the current version of the API exposes the following:

  • Criticality
  • Event
  • Event Types (and all filter criteria within it)

Other categories will continue to be added in future updates.

Event Log Filter CategoryCriteriaAvailable via APIAvailable in VaaS UI
Criticality0 or 1YESYES
Description(user-defined)NOYES
EventNAYESYES
Event TypeAll criteria are included when forwarding this category. Refer to the list of criteria as described above in the Before you begin section.YES (all)YES
TimestampNANOYES

Example 1: forward critical events for a specific event type to a Slack channel​

Forward all critical events for a specific event type. For example, you could forward all failed attempts to log into Certificate Manager - SaaS to a Slack channel.

{
    "name": "someName",
    "properties": {
        "connectorKind": "WEBHOOK",
        "target": {
            "type": "slack",
            "connection": {
                "url": "https://hooks.slack.com/services/"
            }
        },
        "filter": {
            "activityTypes": ["Authentication"]
            "criticality": 1
        }
    }
}

Example 2: forward specific event types to your security service tools​

Forward all critical events related to all event types. For example, you could forward all critical events to your SIEM or other security service tools, where you create your own triggers for responding to Certificate Manager - SaaS events.

{
    "name": "someName",
    "properties": {
        "connectorKind": "WEBHOOK",
        "target": {
            "type": "generic",
            "connection": {
                "url": "https://my.secops.com/services/"
            }
        },
        "filter": {
            "criticality": 1
        }
    }
}

Example 3: forward a specific activity to a team in Microsoft Teams​

Send a specific event--in this example, Login Succeeded--to a channel in Microsoft Teams for a quick method of notification about the activity.

{
    "name": "someName",
    "properties": {
        "connectorKind": "WEBHOOK",
        "target": {
            "type": "teams",
            "connection": {
                "url": "https://mycompany.webhook.office.com/webhookb2/..."
            }
        },
        "filter": {
            "activities": ["Login Succeeded"]
        }
    }
}

Step 3: Send your JSON data to the API​

In this step, you will send your JSON data to the API. Use a tool such as Postman to send a POST request, as shown below:

POST https://api.venafi.cloud/v1/connectors
tppl-api-key: xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx
Content-Type: application/json

The response body should look something like this:

{
    "name": "someName",
    "properties": {
        "connectorKind": "WEBHOOK",
        "target": {
            "type": "slack",
            "connection": {
                "url": "https://hooks.slack.com/services/"
            }
        },
        "filter": {
            "activityTypes": ["Authentication"]
            "criticality": 0
        }
    }
}

Step 4: Give it a try​

Now, try creating new logged events for the filter categories you chose by logging into Certificate Manager - SaaS and performing actions that create those event logs.

As a simple example, suppose you selected the following configuration:

  • Target: Slack
  • Filter category: Event Type
  • Category criteria: Authentication
  • Criticality: 0

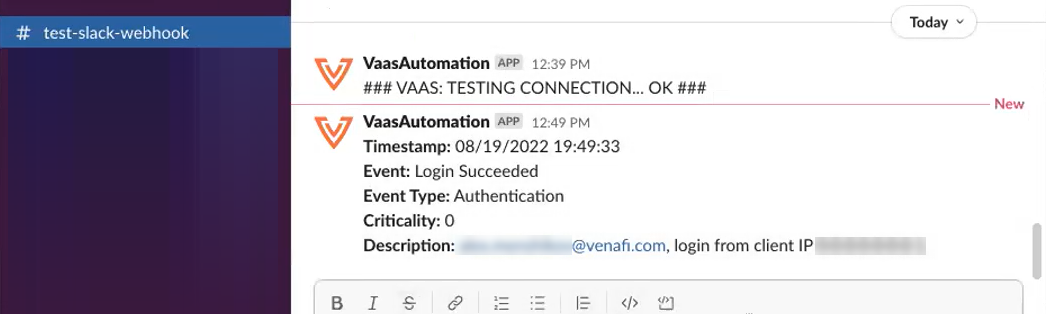

Then you should see something like this appear in your Slack channel:

screenshot of Slack channel
